LED DESK LAMP SERIES

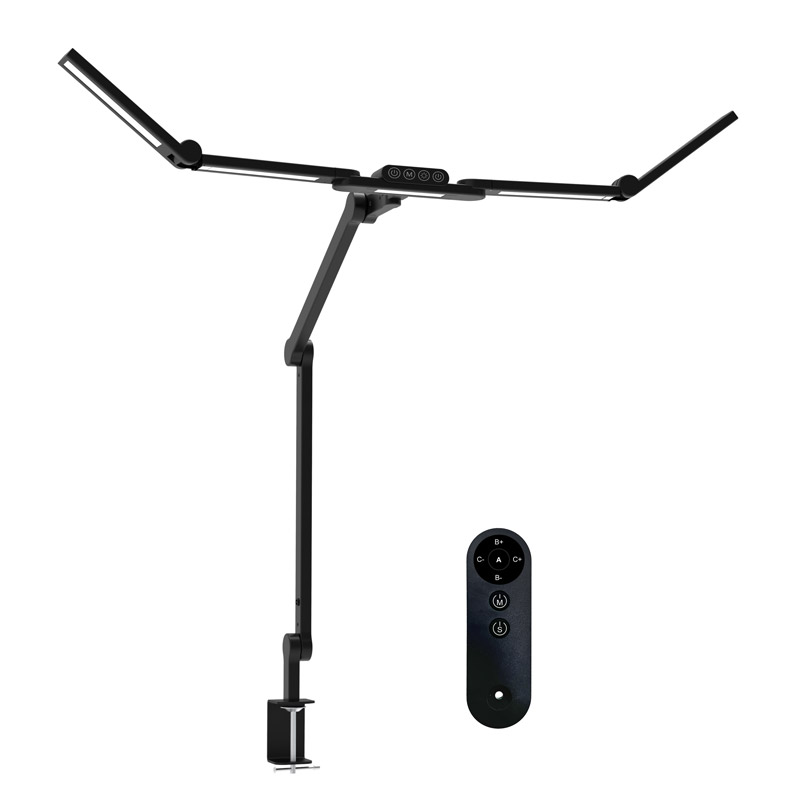

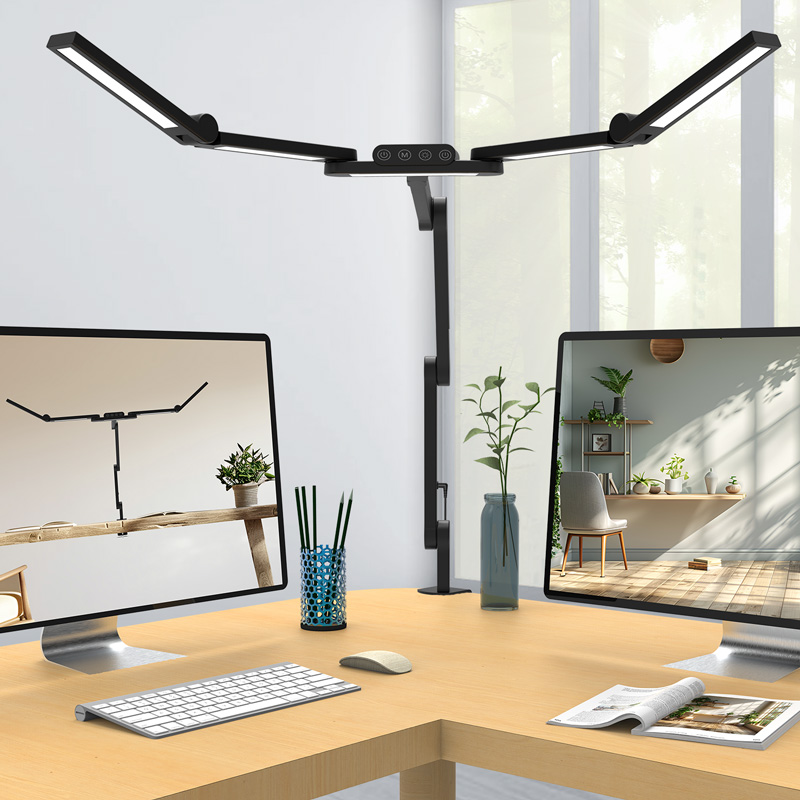

The FDDL18 is a large professional LED desk lamp with five adjustable light bars, designed to provide broad and flexible illumination across large work surfaces. Its 824 mm wide lighting structure and multi-joint arm allow the five light sections to be positioned for wider coverage or more focused task lighting, while the clamp-mounted design keeps valuable desktop space free. With 1583 lm luminous flux, center illuminance above 2000 lx at 60 cm, CRI ≥90, and adjustable 3000–6500 K color temperature, it delivers bright, accurate and adaptable lighting for demanding desktop work. Touch-controlled brightness, stepless adjustment and ambient light control further improve usability, making the FDDL18 well suited to multi-monitor workstations, drafting and design desks, electronics repair, handicrafts and other large-area professional task-lighting applications.
Custom logo, packaging,and structure options.
LED lighting with low power consumption.
Private-mold productwith original structure.
Flexible arm, brightness,and CCT control.
Need OEM/ODM customization? Send us your requirements.

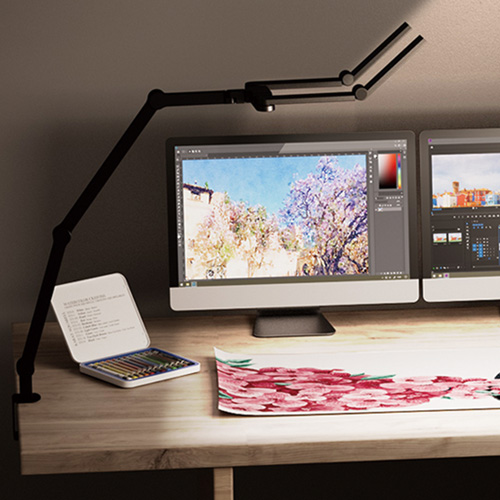

45°Angled Design,only illuminates your desk

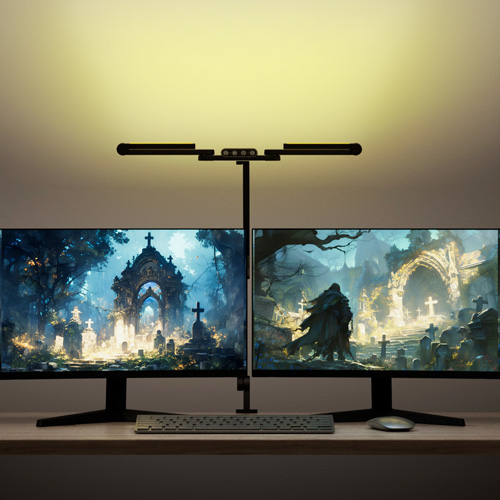

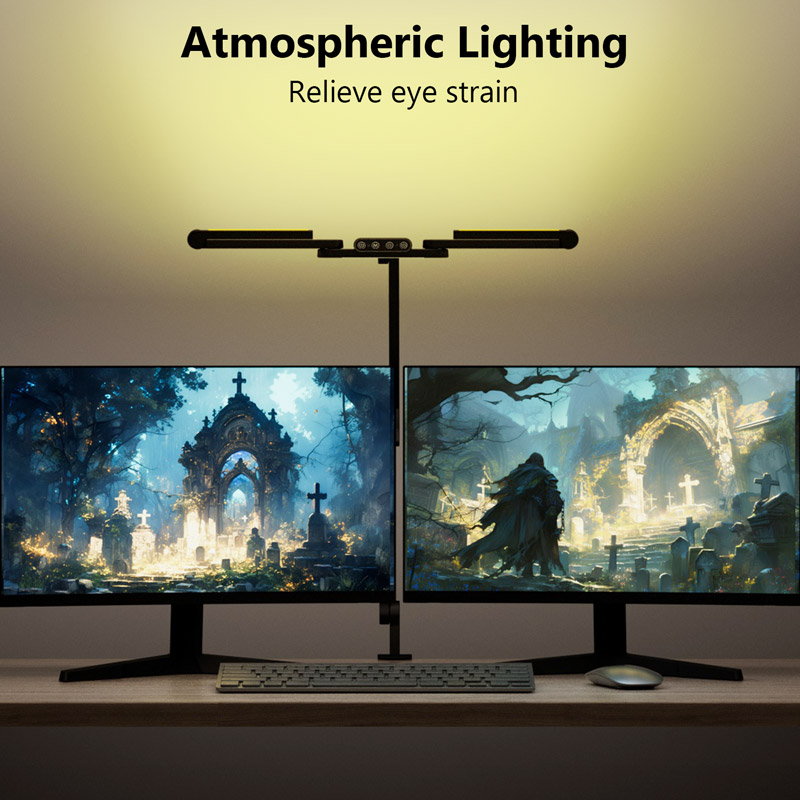

Atmospheric Lighting,relieve eye strain
desktop brighter Concentrate light to make the
| FDDL18 Parameters | |||
|---|---|---|---|
| Rated Power | 24 W | Actual Power | 22 W |
| Color Temperature | 3000–6500 K | Input | 100–240 V, 50/60 Hz, 0.8 A |
| Output | 24 V, 1 A | Luminous Flux | 1650 lm |
| CRI | ≥90 | LED Quantity | 126 LEDs |
| Control Method | Touch Control Optional Remote Control | Color Box Size | 44.8 × 19.7 × 8.8 cm |
| Carton Size | 46.5 × 41.5 × 46 cm | Quantity per Carton | 10 pcs/ctn |
| Gross Weight per Piece | 1.38 kg | Gross Weight per Carton | 15 kg |

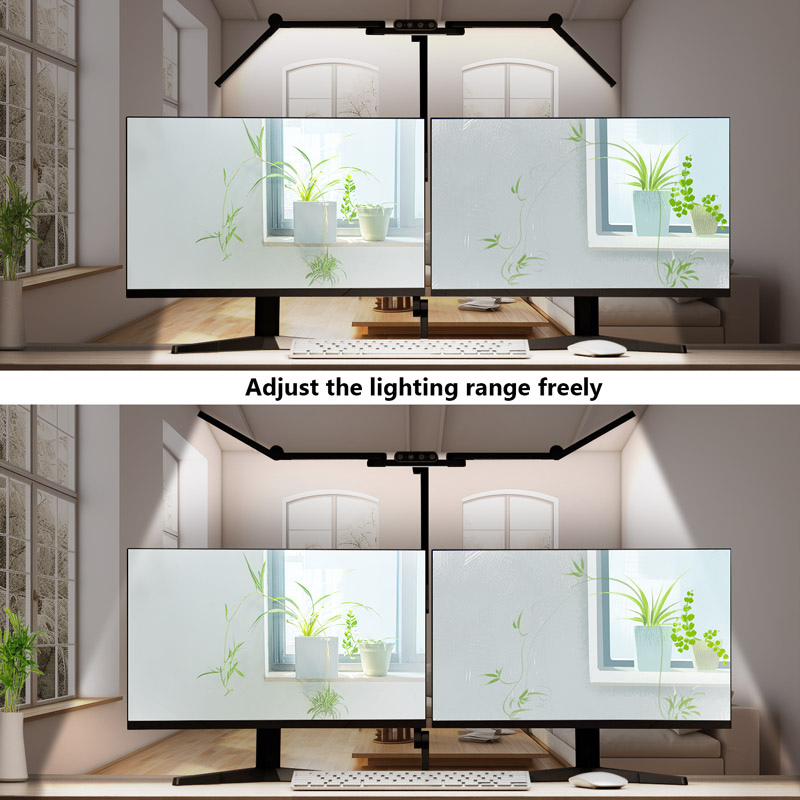

Diffuse Lighting

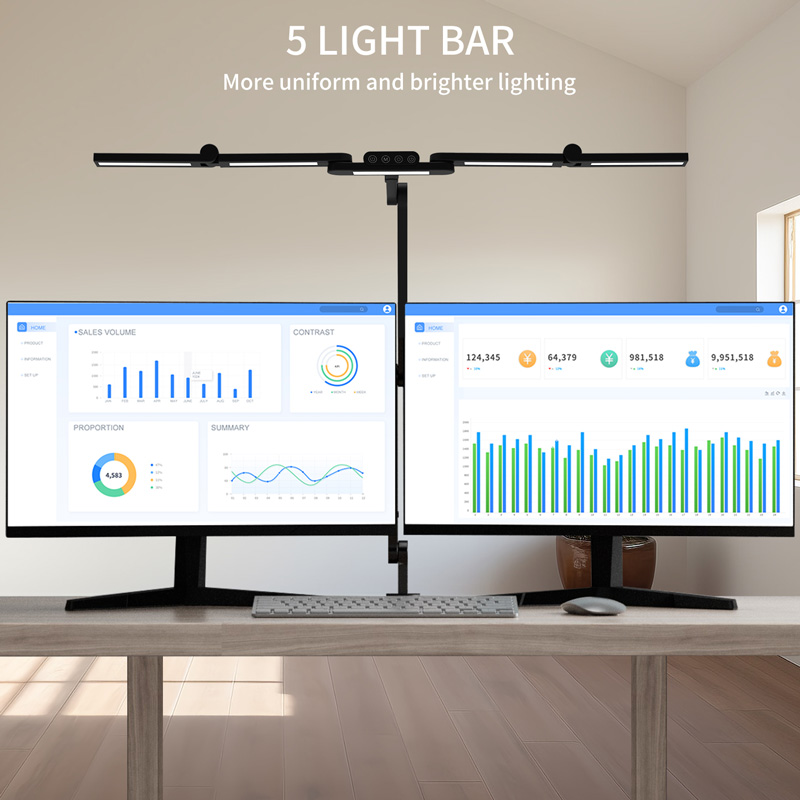

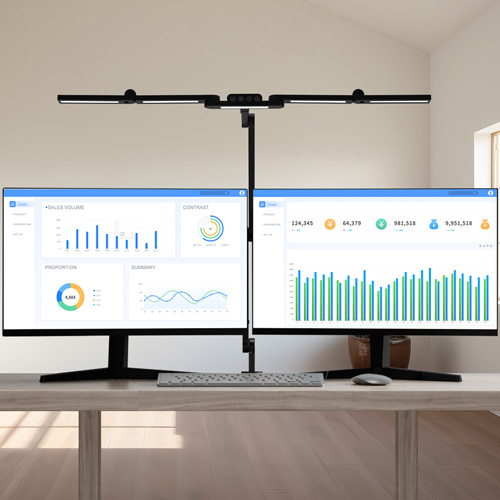

The five-light-bar design spreads illumination across a wide desktop area, helping provide more even coverage for large work surfaces, multi-monitor setups, drafting and other detailed tasks.
Illuminance
Delivers up to 1583 lm luminous flux with center illuminance above 2000 lx at 60 cm, providing strong task lighting for large desks, workstations and precision work.

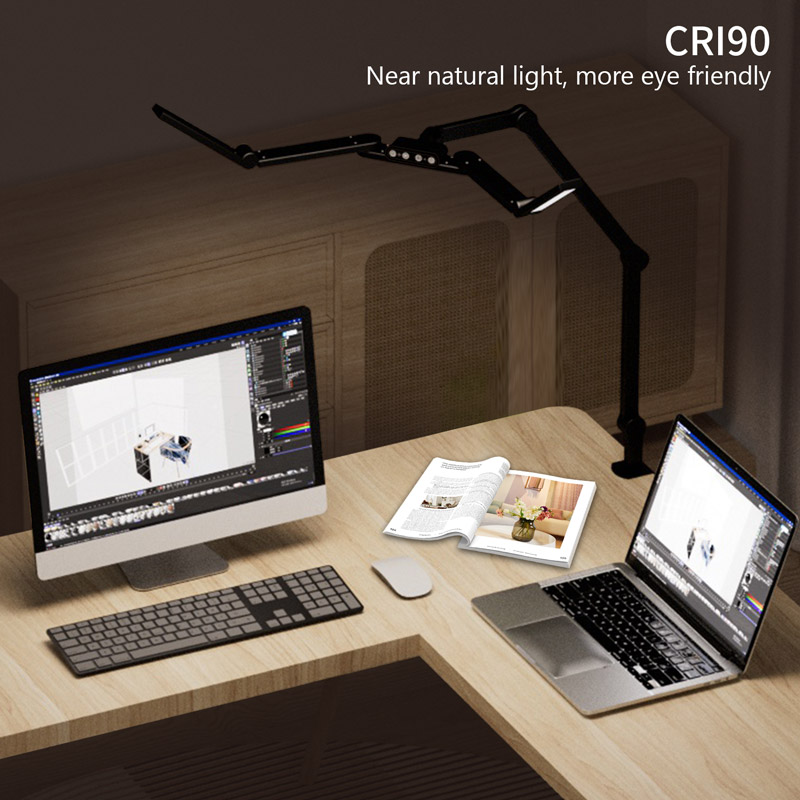

Color Rendering
With a CRI of Ra≥90, the FDDL18 reproduces colors more naturally and accurately, making it suitable for drawing, design, handicrafts, inspection and other color-sensitive tasks.
Blue Light and Flicker
The FDDL18 uses a constant-voltage LED driving system for stable everyday operation. It is designed for prolonged indoor task-lighting applications such as office work, reading and detailed desktop work.
Dimmable
Five preset brightness levels from 20% to 100% are available by touch control, while press-and-hold operation provides stepless adjustment for more precise lighting control.
Color Temperature
Adjustable from 3000K to 6500K, with five preset color temperatures and stepless adjustment, allowing users to switch between warmer and cooler light for different tasks and environments.
Flexible on Height & Angle

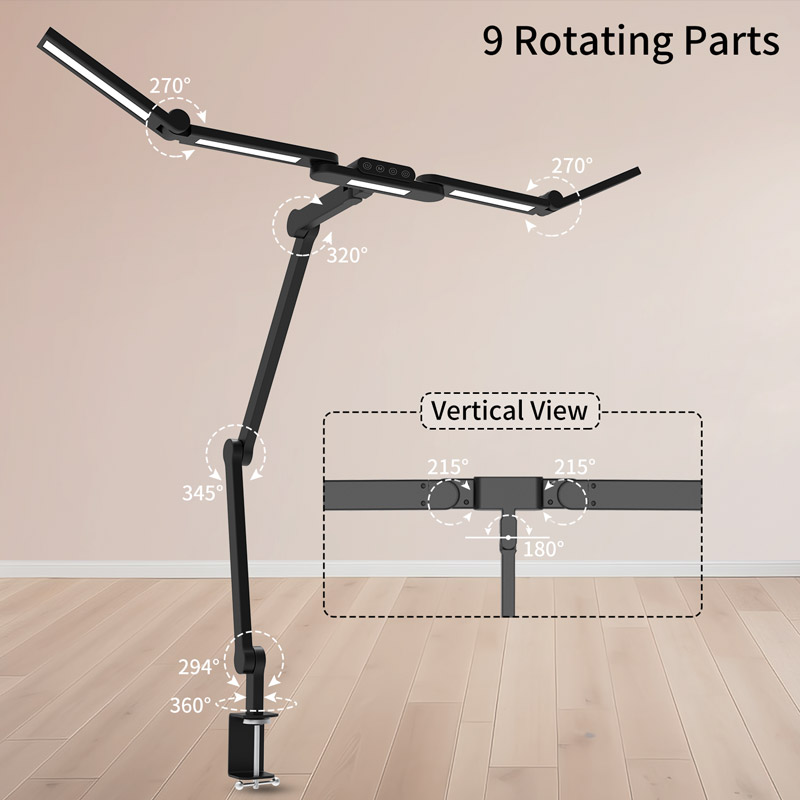

An 8-joint adjustable structure allows the lamp arm and five light bars to be repositioned across different heights and angles, making it easier to direct light over large or irregular work areas.
Built around a five-light-bar structure, multi-joint arm and integrated touch-control system, the FDDL18 combines wide-area illumination with practical mechanical adjustability for professional desktop lighting applications.
Logo printing. packaging design, lamp head options, and bese customization for OEM and ODM projects.
Create retail-ready packaging that matches your brand image and market requirements. We support custom box design, labels, manuals, inserts, and shipping cartons for OEM and ODM orders.
Retail boxes, color boxes, and neutral packaging can be customized with your brand logo, product information, and visual design.
User manuals, product labels, barcodes, warning labels, and package inserts can be prepared according to your sales market.
Foam inserts, inner trays, and reinforced cartons help protect the lamp during storage, handling, and international shipping.
Strengthen your brand identity with high-precision logo printingon the lamp body. We support a variety of printing techniquesto ensure a premium and durable finish.
Laser engraving, silk-screen printing, UV printing and more.
Centered logo area on the lamp body for maximum visibility.
Low MOQ, fast lead time, and dedicated support for your brand.
Choose different lamp head designs to match various lighting applications, product positioning, and customer preferences. We support flexible lamp head options for OEM and ODM projects.
Multiple lamp head shapes and structures are available to meet different lighting coverage and appearance requirements.
Wide lighting, focused lighting, multi head lighting, and ambient lighting options can be selected for different usage scenarios.
Lamp head style, length, control layout, and lighting function can be adjusted according to your project requirements.
Select the right base style for different installation environments, desktop layouts, and product positioning. We offer clamp bases, weighted bases, and other mounting options for flexible use.
Clamp base, round base, square base, and weighted base options are available for different product designs and usage needs.
Different base structures help balance stability, desktop space, and installation convenience for various workspaces.
Base options can be matched with office desks, workbenches, beauty tables, craft tables, and home workspaces.
The FDDL18 uses a five-light-bar design to provide wider and more flexible illumination across large work surfaces. The light bars and multi-joint arm can be adjusted to cover different working areas, making it more suitable for large desks, multi-monitor workstations, drafting tables and other professional task-lighting applications.
The lamp delivers up to 1583 lm luminous flux and more than 2000 lx center illuminance at 60 cm. With a CRI of Ra≥90, it provides bright and accurate illumination for office work, drawing, design, handicrafts, inspection and other detail-oriented applications.
Yes. The FDDL18 offers five preset brightness levels from 20% to 100% and five preset color temperatures from 3000K to 6500K. Both brightness and color temperature also support stepless adjustment through the touch control panel.
Yes. The lamp includes an ambient light sensor. When the light-sensing function is activated, the output automatically decreases in brighter surroundings and increases when the surrounding light becomes dimmer, helping maintain more consistent task lighting.
The FDDL18 is built with 8 adjustable joints and uses PC, ABS, aluminum alloy and steel components. The joints are rated for approximately 20,000 adjustment cycles, allowing the lamp to be repositioned frequently for different workstation layouts and lighting angles.
The specification lists certifications including CE, RoHS, UKCA and other market-related approvals depending on the configuration. Standard packing is 10 sets per master carton, with a color box size of approximately 448 × 197 × 88 mm and a unit gross weight of about 1.38 kg. Exact certification requirements should be confirmed according to the destination market and order configuration.
