LED DESK LAMP SERIES

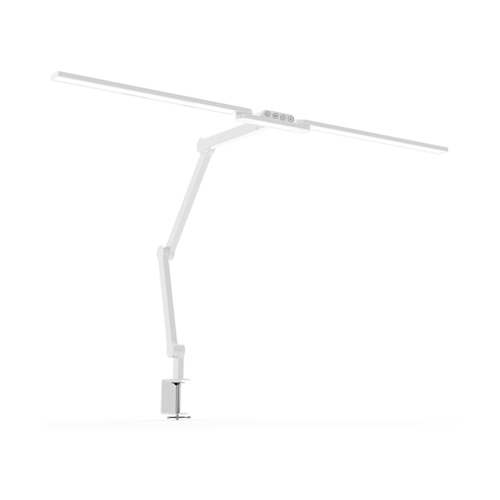

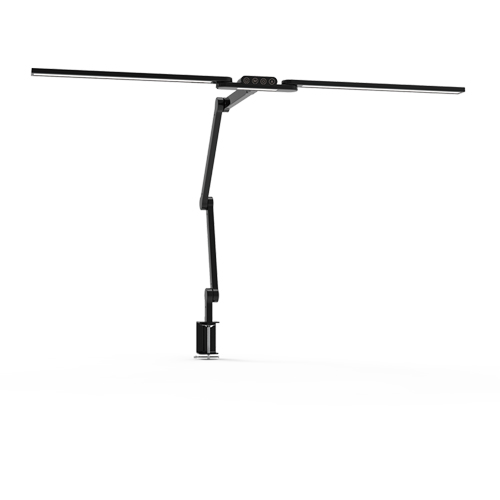

The FDDL04 is a dual linear head clamp on LED desk lamp designed to provide wide and adjustable illumination for large desks and professional workspaces. Its 950 mm light head structure and seven adjustable joints allow users to position the light according to different desk layouts and task requirements. The lamp delivers up to 1550 lumens and more than 1900 lux at a height of 60 cm, with CRI Ra 90 or higher for clear and natural color presentation. Touch controls provide five brightness levels, five color temperatures from 3000K to 6000K, stepless adjustment, lighting memory, and automatic brightness control through the built in ambient light sensor. The space saving clamp installation makes it suitable for offices, multi monitor desks, drawing, sewing, repair, crafting, and other detailed work.
Custom logo, packaging,and structure options.
LED lighting with low power consumption.
Private-mold productwith original structure.
Flexible arm, brightness,and CCT control.
Need OEM/ODM customization? Send us your requirements.

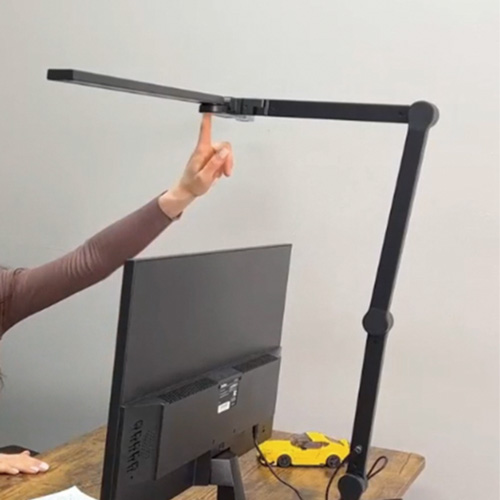

Can flexibly change angles

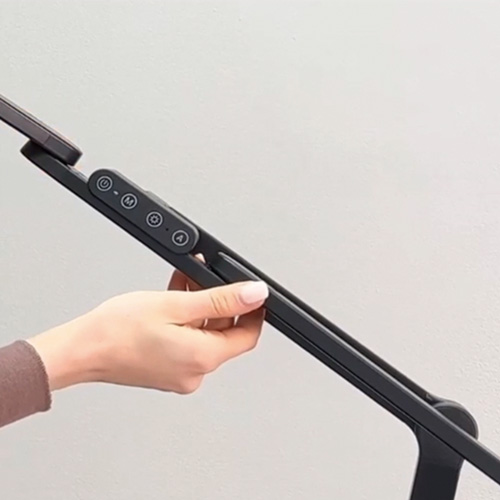

Easy operation
Increased irradiation range
| FDDL04 Parameters | |||
|---|---|---|---|
| Rated Power | 24 W | Actual Power | 22 W |
| Color Temperature | 3000–6500 K | Input | 100–240 V, 50/60 Hz, 0.8 A |
| Output | 24 V, 1 A | Luminous Flux | 1550 lm |
| CRI | ≥90 | LED Quantity | 154 LEDs |
| Control Method | Touch Control Optional Remote Control | Color Box Size | 44.8 × 19.7 × 8.8 cm |
| Carton Size | 46.5 × 41.5 × 46 cm | Quantity per Carton | 10 pcs/ctn |
| Gross Weight per Piece | 1.35 kg | Gross Weight per Carton | 14.5 kg |

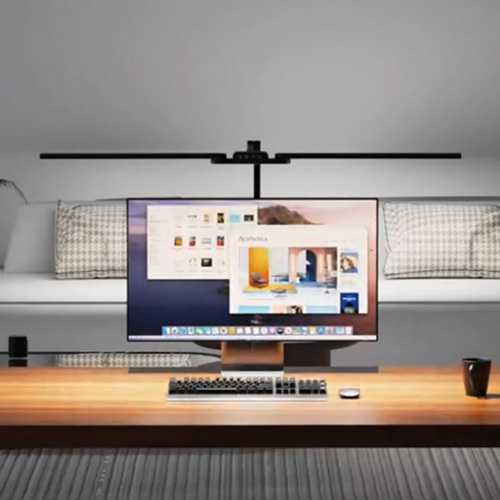

Diffuse Lighting
The wide three section light head distributes light across a large work area helping reduce dark zones and uneven brightness on desks used for reading drawing crafting repair and multi screen office work
Illuminance
Provides up to 1550 lumens with center illuminance above 1900 lux at a height of 60 cm delivering clear task lighting for large desks and detailed professional work
Color Rendering
CRI Ra 90 LEDs reproduce colors more naturally helping users distinguish details and color differences during drawing inspection handicrafts beauty work and other precision tasks
Blue Light and Flicker
The constant voltage LED driving system provides stable light output for comfortable daily use making the lamp suitable for extended office reading study and detailed work sessions

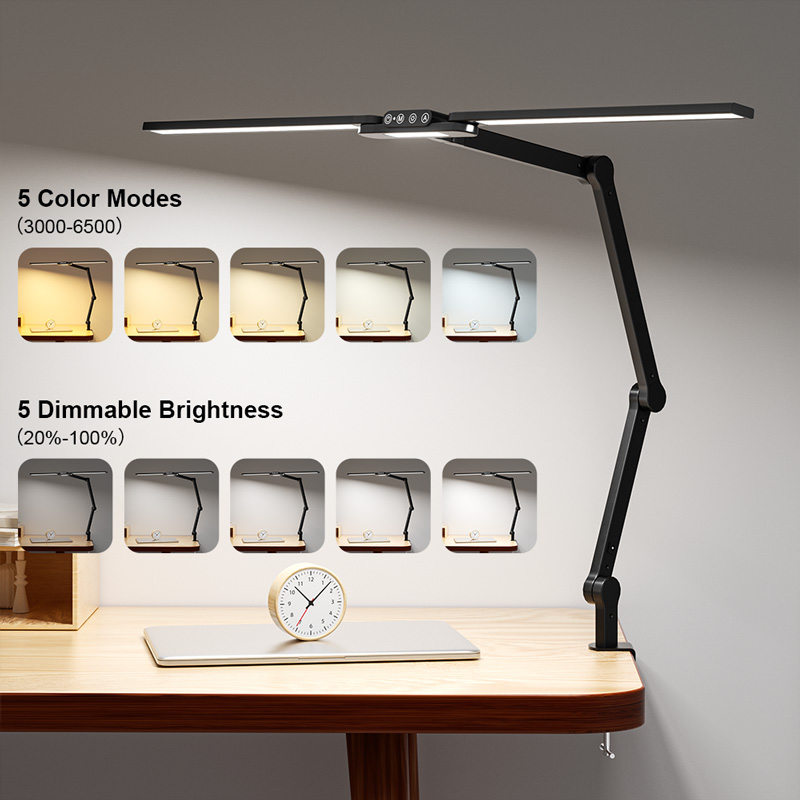

Dimmable
Five preset brightness levels from 20 percent to 100 percent are available through the touch control panel Press and hold the brightness button for smooth stepless adjustment
Color Temperature
Five preset color temperatures from 3000K to 6000K support warm neutral and cool lighting Press and hold the color temperature button for continuous adjustment within this range
Flexible on Height & Angle

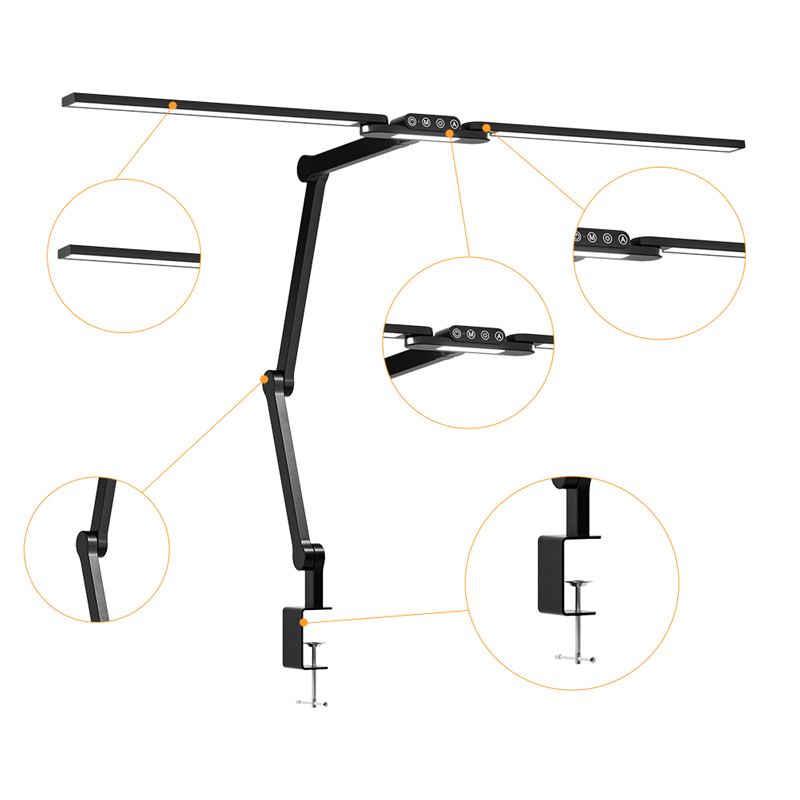

Seven adjustable joints allow the lamp height reach direction and light bar angle to be repositioned The clamp base also rotates to help users direct the light across different desk layouts
Developed by our in house engineering team the FDDL04 combines a wide lighting structure adjustable joints touch controls and ambient light sensing for practical professional workspace illumination
Logo printing. packaging design, lamp head options, and bese customization for OEM and ODM projects.
Create retail-ready packaging that matches your brand image and market requirements. We support custom box design, labels, manuals, inserts, and shipping cartons for OEM and ODM orders.
Retail boxes, color boxes, and neutral packaging can be customized with your brand logo, product information, and visual design.
User manuals, product labels, barcodes, warning labels, and package inserts can be prepared according to your sales market.
Foam inserts, inner trays, and reinforced cartons help protect the lamp during storage, handling, and international shipping.
Strengthen your brand identity with high-precision logo printingon the lamp body. We support a variety of printing techniquesto ensure a premium and durable finish.
Laser engraving, silk-screen printing, UV printing and more.
Centered logo area on the lamp body for maximum visibility.
Low MOQ, fast lead time, and dedicated support for your brand.
Choose different lamp head designs to match various lighting applications, product positioning, and customer preferences. We support flexible lamp head options for OEM and ODM projects.
Multiple lamp head shapes and structures are available to meet different lighting coverage and appearance requirements.
Wide lighting, focused lighting, multi head lighting, and ambient lighting options can be selected for different usage scenarios.
Lamp head style, length, control layout, and lighting function can be adjusted according to your project requirements.
Select the right base style for different installation environments, desktop layouts, and product positioning. We offer clamp bases, weighted bases, and other mounting options for flexible use.
Clamp base, round base, square base, and weighted base options are available for different product designs and usage needs.
Different base structures help balance stability, desktop space, and installation convenience for various workspaces.
Base options can be matched with office desks, workbenches, beauty tables, craft tables, and home workspaces.

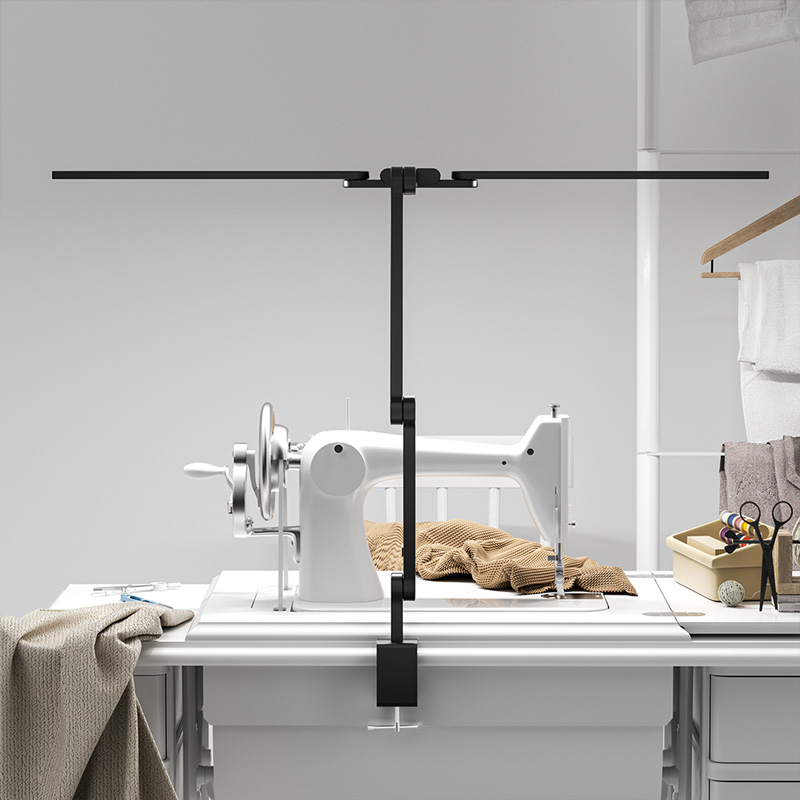

The FDDL04 is designed for large desks and work areas that require wide and even illumination. Its 950 mm three-section light bar makes it suitable for multi-monitor workstations, drawing, sewing, handicrafts, electronics repair, model making, reading, beauty work, and other precision tasks.
Yes. The lamp offers five preset color temperatures: 3000K, 3500K, 4000K, 5000K, and 6000K. Users can also press and hold the control button for stepless adjustment between 3000K and 6000K. Brightness can be adjusted through five levels from 20% to 100%, or continuously through stepless dimming.

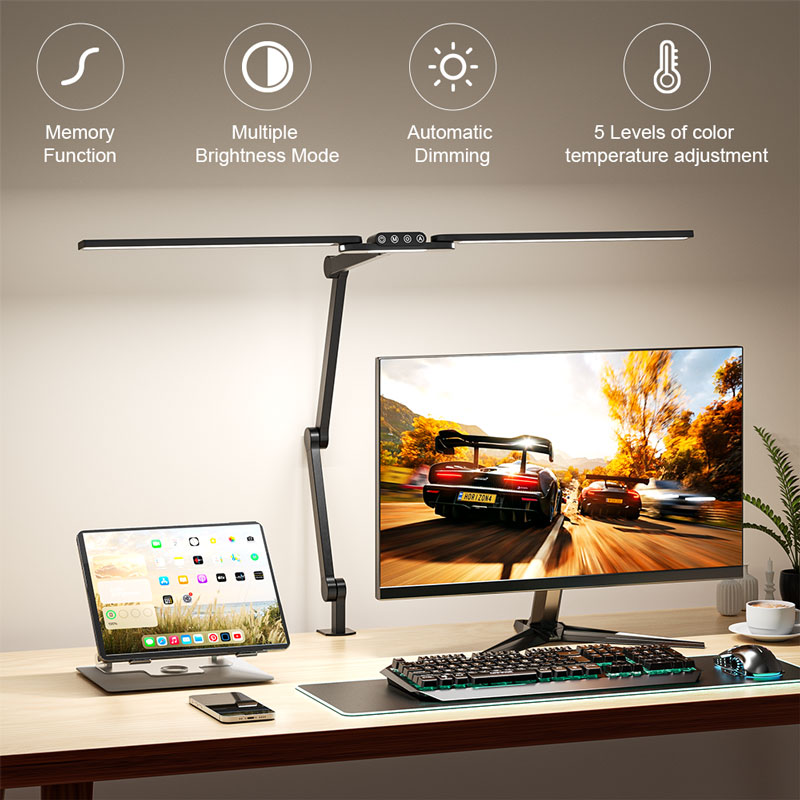

Yes. The built-in ambient light sensor automatically adjusts the lamp output according to the surrounding brightness. The light becomes brighter in darker environments and reduces its output when the surrounding light increases. The memory function also restores the previous lighting setting when the lamp is switched on again.
At full brightness, the lamp provides approximately 1,550 lumens, with a central illuminance of more than 1,900 lux at a working height of 60 cm. Its CRI Ra ≥90 helps display colors more naturally, making it suitable for drawing, inspection, handicrafts, beauty applications, and other tasks that require clear visual detail.

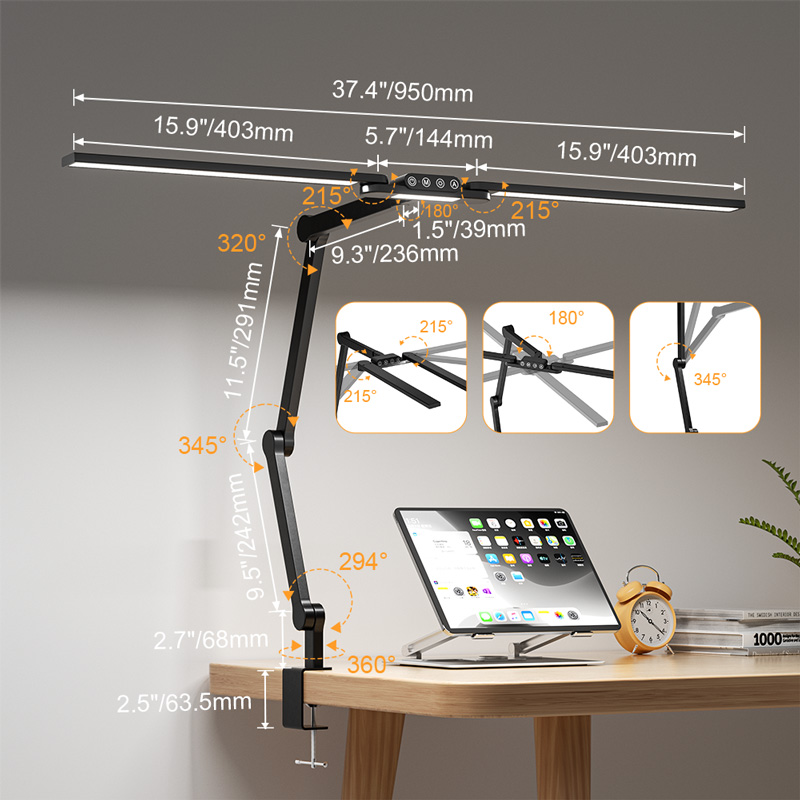

The FDDL04 features seven adjustable joints that allow the lamp height, arm position, lighting direction, and light-bar angle to be repositioned for different workspaces. The rotating base and independently adjustable light sections provide flexible coverage across large desktops. The clamp can accommodate desktops up to approximately 63.5 mm thick.
The complete lamp supports AC 100–240V, 50/60Hz input, making it suitable for different international markets. Its rated system power is approximately 20W, and the adapter outputs DC 24V. The complete lamp can comply with CE, RoHS, UKCA, and FCC requirements. Adapter certification options may also include ETL, PSE, CCC, and UKCA, depending on the target market and selected adapter.
Yes. As a direct LED lighting manufacturer, we support OEM and ODM projects for distributors, importers, retailers, and lighting brands. Available options may include logo printing, housing color, packaging design, user manuals, plug types, adapters, and selected functional adjustments. Custom requirements are reviewed by our engineering team before production to confirm feasibility, cost, and compliance.
The standard color box measures approximately 448 × 197 × 88 mm. Ten lamps are packed in one outer carton measuring approximately 465 × 415 × 460 mm. The gross weight is around 1.35 kg per unit and 14.5 kg per carton. MOQ and production lead time depend on the order quantity, packaging requirements, certification needs, and level of customization. Final packaging specifications are confirmed before mass production.
